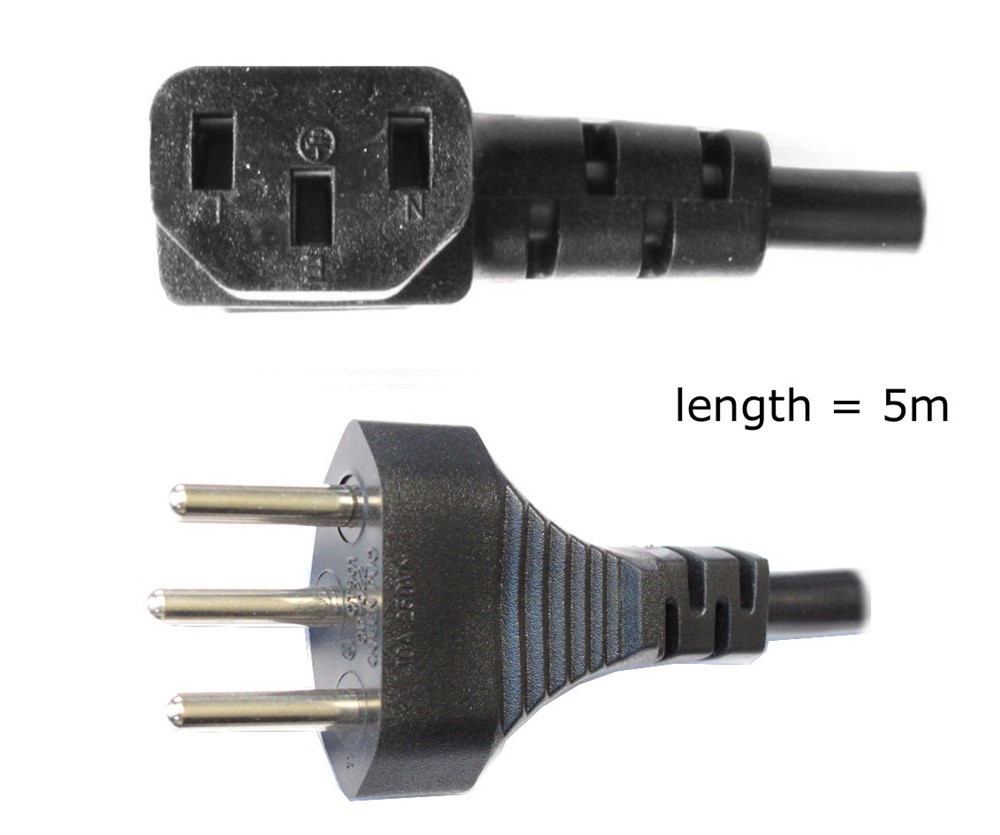

Elinchrom Power Cord C13 angled 5 meter CH (Switzerland) with Swiss SEV 1011 connector. This is a 5-meter grounded power cord using H05VV-F 3G1.0 mm² flexible cable, fitted with a PHP-311 3-pin mains plug and a right-angle IEC 60320 C13 connector, PHS-301RL. The cable is rated for 300/500 V, manufactured in accordance with IEC 60227 IEC 53, and is RoHS compliant. It is suitable for connecting electrical equipment to a 230 V AC mains supply.
Mains Plug
- Model: PHP-311
- 3-pin grounded power plug
- Black molded PVC construction
Equipment Connector
- Model: PHS-301RL
- IEC 60320 C13 connector
- Right-angle design
- Black molded PVC construction
Technical Specifications
| Specification |
Value |
| Part Number (P/No) |
EL-11055.CH |
| Product |
Power Supply Cord |
| Mains Plug |
PHP-311, 3-pin grounded power plug, black |
| Equipment Connector |
PHS-301RL, IEC C13 right-angle connector, black |
| Cable Length |
5000 ±100 mm / 5 m |
| Cable Type |
H05VV-F |
| Number of Conductors |
3G1.0 mm² |
| Conductor Size |
3 × 1.0 mm² |
| Jacket Material |
PVC, black |
| Plug Type |
Molded PVC plug |
| Connector Type |
Molded PVC connector |
| Cable Tie |
Black elliptical cable tie |
| Rated Voltage |
300/500 V |
| Standard |
IEC 60227 IEC 53 |
| RoHS Compliance |
Yes, all materials are RoHS compliant |
| Color |
Black |
